Comprehensive Guide to Club Car DS Gas Starter Generator Wiring Diagrams
For decades, the Club Car DS has been a staple in the golf cart industry, known for its durability, iconic design, and reliability. However, like any mechanical vehicle, its electrical system requires maintenance and, occasionally, troubleshooting. One of the most critical components of this system is the starter generator. Understanding the Club Car DS gas starter generator wiring diagram is essential for any owner or mechanic looking to perform repairs, replace parts, or diagnose charging and starting issues.
In this guide, we will dive deep into the intricacies of the Club Car DS electrical architecture. We will explore how the starter generator functions as both a motor and a dynamo, the role of the solenoid, and how to navigate the complex web of wires that keep your golf cart moving smoothly across the green.
The Dual Role of the Starter Generator
Unlike a standard car that has a separate starter motor and alternator, the Club Car DS utilizes a "Starter-Generator" unit. This ingenious component performs two distinct functions based on the engine's state:
- Starting Phase: When you press the accelerator pedal, the starter generator acts as a high-torque motor, drawing power from the battery to turn the engine over.
- Generating Phase: Once the engine is running and reaches a certain RPM, the unit switches roles. It begins to produce electrical current (DC voltage) to recharge the battery and power the cart’s accessories, such as lights and horns.
Because of this dual functionality, the wiring diagram is slightly more complex than a standard ignition circuit. It involves high-current cables for starting and smaller gauge wires for the voltage regulation and field excitation.
Key Components in the Club Car DS Wiring System
To successfully interpret a Club Car DS gas starter generator wiring diagram, you must first identify the primary components connected to the circuit. Each plays a pivotal role in ensuring the cart starts when prompted and charges while in motion.
1. The Solenoid
The solenoid is essentially a heavy-duty electromagnetic switch. When you turn the key and press the pedal, a small amount of current activates the solenoid, which then closes a larger contact to allow massive amounts of current to flow from the battery directly to the starter generator. If your cart "clicks" but won't turn over, the solenoid is often the culprit.
2. The Voltage Regulator
Without a regulator, the starter generator would produce too much voltage as the engine speeds up, potentially frying your battery. The voltage regulator monitors the battery's state and adjusts the field current in the generator to maintain a steady output, usually between 13.5V and 14.5V.
3. Micro-switches
The Club Car DS uses several micro-switches (usually located in the pedal box and on the Forward/Reverse shifter). These act as safety interlocks. The engine will not start unless the shifter is in gear and the pedal is depressed, completing the circuit to the solenoid's activation coil.
| Component Aspect | Wiring Description & Function |
|---|---|
| Main Battery Cable (Red) | Connects the positive battery terminal to the large post on the solenoid. Provides primary power. |
| Ground Cable (Black) | Connects the negative battery terminal to the frame or engine block and the A2 terminal of the generator. |
| Solenoid to Starter (White) | The heavy gauge wire that carries current from the solenoid to the F1/A1 terminal on the starter. |
| Field Wire (Green) | Connects the voltage regulator to the DF terminal on the starter generator to control output. |
| Key Switch Wire | A smaller gauge wire that triggers the solenoid when the ignition is in the 'ON' position. |
Tracing the Wiring Diagram: Step-by-Step
When looking at a schematic for a Club Car DS (particularly models from 1984 to 2013), you will notice a standard color-coding system. While variations exist between the 341cc Side Valve and the later OHV engines, the basic logic remains the same.
The Starting Circuit
The journey starts at the 12V battery. A thick red cable runs to one side of the solenoid. On the other side of the solenoid, a thick white wire runs to the starter generator (Terminal A1). When the micro-switch at the pedal is triggered, it sends a 12V signal to the small terminal on the solenoid. This creates a magnetic field, pulling the internal plunger down and bridging the gap between the two large terminals. The starter generator then spins the engine via the drive belt.
The Charging Circuit
Once the engine is running, the starter generator spins fast enough to generate electricity. This current is sent back through the wiring to the battery. To ensure the battery isn't overcharged, the voltage regulator (usually a small square box mounted near the battery or under the seat) is connected to the 'DF' (Direct Field) terminal on the generator. By varying the ground on this green wire, the regulator controls the strength of the generator's magnetic field, thereby controlling its output.
Common Wiring Issues and Troubleshooting
If your Club Car DS is experiencing electrical gremlins, the wiring diagram is your best friend. Here are the most common points of failure:
- Corroded Ground Wires: Because golf carts are often used in damp environments, ground connections to the frame can rust. This causes high resistance, leading to slow cranking or a failure to charge. Always check the black wires for clean, metal-to-metal contact.
- Faulty Solenoid: If you hear a click but the engine doesn't turn, use a voltmeter to check if power is crossing the two large solenoid posts. If 12V is present on one side but not the other when the pedal is pressed, the solenoid is dead.
- Voltage Regulator Failure: If your battery is "boiling" (getting extremely hot and smelling like sulfur) or if the lights get extremely bright when you rev the engine, the regulator is likely stuck in the "full charge" position. Conversely, if the battery stays at 12V while the engine is running, the regulator or the generator brushes may be worn out.
Advanced Tips for DIY Mechanics
When working with a Club Car DS gas starter generator wiring diagram, always disconnect the negative battery cable first to prevent accidental shorts. Use a high-quality multimeter to test continuity. If you are replacing the starter generator, ensure the belt tension is correct. A belt that is too loose will slip during the starting phase, while a belt that is too tight can damage the bearings in the generator and the engine's crank pulley.
Furthermore, pay close attention to the F1 and F2 terminals. Reversing these can cause the starter generator to spin in the wrong direction, which won't start the engine and can cause damage to the internal brushes.
Frequently Asked Questions
Why does my Club Car DS only click when I press the pedal?
The clicking sound indicates that the solenoid is engaging, but power isn't reaching the starter generator or the generator doesn't have enough torque to turn the engine. Check for a weak battery, corroded high-current cables, or worn-out internal brushes in the starter generator itself.
How can I tell if my starter generator is charging?
With the engine off, measure the battery voltage (it should be around 12.6V). Start the engine and rev it up. The voltage should rise to between 13.8V and 14.5V. If it stays at 12.6V or drops, the system is not charging.
Can I bypass the voltage regulator to test it?
Yes, for a brief "full field" test. By grounding the DF terminal (the green wire) directly to the frame while the engine is running, the generator should jump to its maximum output (often 16V+). If the voltage jumps during this test, your generator is fine, and the voltage regulator is likely the part that needs replacement.
Conclusion
Mastering the Club Car DS gas starter generator wiring diagram is the key to maintaining a reliable and high-performing golf cart. By understanding how the solenoid, voltage regulator, and starter generator interact, you can save hundreds of dollars in professional repair costs and gain the satisfaction of maintaining your own vehicle. Whether you are dealing with a cart that won't start on a cold morning or one that refuses to keep its battery charged, a methodical approach to the electrical system—starting from the battery and following the wires through the circuit—will almost always lead you to the solution. Keep your connections clean, your battery healthy, and your belts tight, and your Club Car DS will continue to serve you for years to come.
Club Car Ds Gas Starter Generator Wiring Diagram
Club Car Ds Gas Starter Generator Wiring Diagram Wallpapers
Collection of club car ds gas starter generator wiring diagram wallpapers for your desktop and mobile devices.
Detailed Club Car Ds Gas Starter Generator Wiring Diagram Wallpaper for Mobile
Discover an amazing club car ds gas starter generator wiring diagram background image, ideal for personalizing your devices with vibrant colors and intricate designs.
Gorgeous Club Car Ds Gas Starter Generator Wiring Diagram Wallpaper for Your Screen
A captivating club car ds gas starter generator wiring diagram scene that brings tranquility and beauty to any device.
Lush Club Car Ds Gas Starter Generator Wiring Diagram Background in 4K
Immerse yourself in the stunning details of this beautiful club car ds gas starter generator wiring diagram wallpaper, designed for a captivating visual experience.
Exquisite Club Car Ds Gas Starter Generator Wiring Diagram Wallpaper in 4K
Find inspiration with this unique club car ds gas starter generator wiring diagram illustration, crafted to provide a fresh look for your background.
Crisp Club Car Ds Gas Starter Generator Wiring Diagram Picture Art
Immerse yourself in the stunning details of this beautiful club car ds gas starter generator wiring diagram wallpaper, designed for a captivating visual experience.

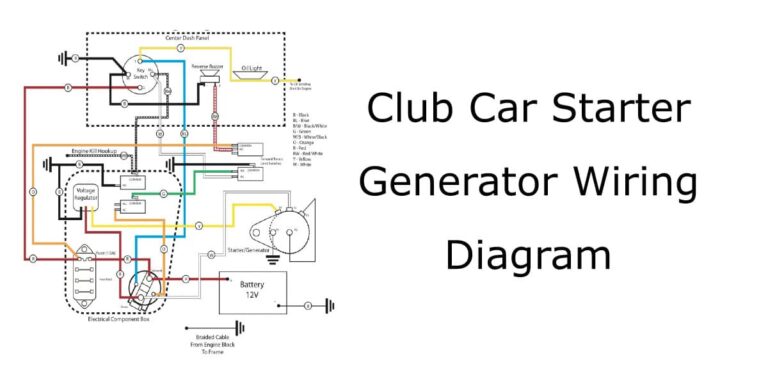

High-Quality Club Car Ds Gas Starter Generator Wiring Diagram Moment in HD
